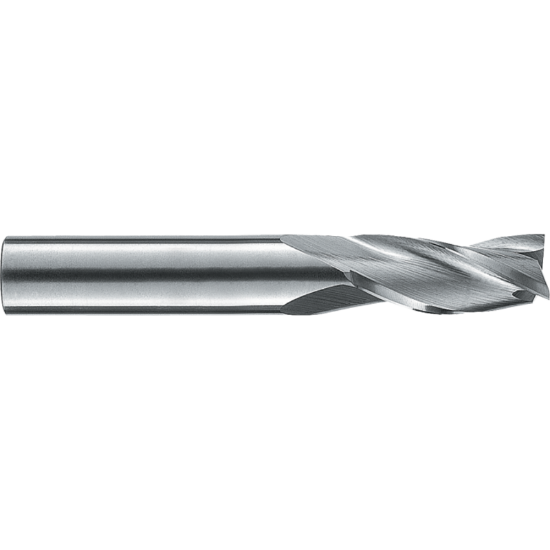

ROBBJACK NR-303-20 DIA 5/8 SH 0.6250 LOC 1.2500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBNR-303-20
Delivery date: 3-5 days
$137.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State California
Performance Rating High Performance
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Machine Side Connection Type Weldon
Helix Angle 30°
Length Type Standard
Dimension Description 0.625 x 0.625 x 1.250 x 3.500
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
