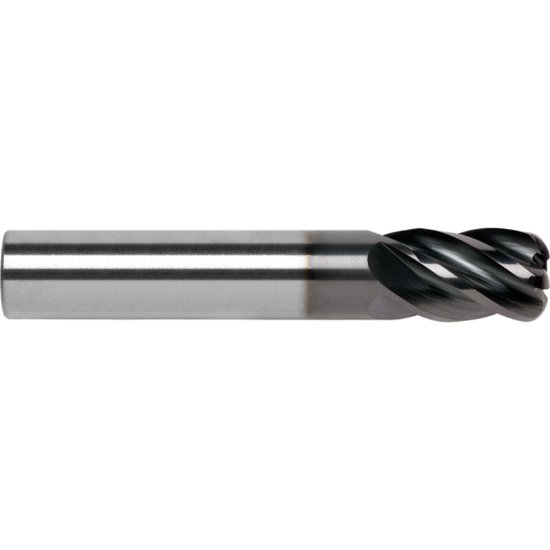

Picture of RobbJack MXG-502-16-FL Dia 16mm SH 0.6299 LOC 1.2598 OAL3.6220 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0276 0.70mm

RobbJack MXG-502-16-FL Dia 16mm SH 0.6299 LOC 1.2598 OAL3.6220 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0276 0.70mm

Part Number: ROBMXG-502-16-FL 0.630 x 0.630 x 1.260 x 3.622

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: 1267241
Vendor: Sussex Tool and Supply
$191.83
ROBBJACK Variable Helix End Mill Carbide Uncoated Corner Radius 0.0276 0.70MM Standard Flute Flutes 5 Single End ROBBJACK Carbide
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Mach Side Connection Size 0.6299 16.00MM
Overall Length 3.6220 92.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 5
Tool Dia 0.6299 16.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.2600 32.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0276 0.70MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
