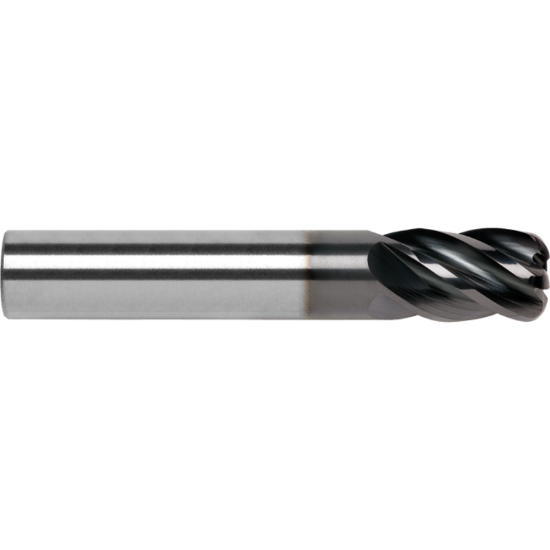

ROBBJACK MXG-502-06-FL DIA 6MM SH 0.2362 LOC 0.5510 OAL 2.2441 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMXG-502-06-FL
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Copy Milling, Profile Milling, Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State California
Dimensional Specifications
Length Of Cut 0.5510 14.00MM
Inch/Metric Metric
Single/Double End Single End
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Standard
Corner Radius 0.0197 0.50MM
Flutes/Inserts 5
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Dimension Description 0.236 x 0.236 x 0.551 x 2.244
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
