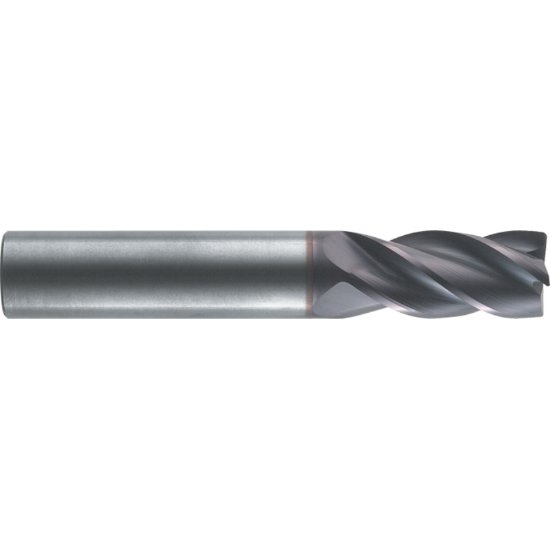

Picture of RobbJack MXG-402-10-FL Dia 10mm SH 0.3937 LOC 0.7874 OAL2.8346 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0236 0.60mm

RobbJack MXG-402-10-FL Dia 10mm SH 0.3937 LOC 0.7874 OAL2.8346 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0236 0.60mm

Part Number: ROBMXG-402-10-FL 0.394 x 0.394 x 0.787 x 2.835

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: 1267219
Vendor: Sussex Tool and Supply
$94.69
ROBBJACK Variable Helix End Mill Carbide Uncoated Corner Radius 0.0236 0.60MM Standard Flute Flutes 4 Single End ROBBJACK Carbide
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.8346 72.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0236 0.60MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
