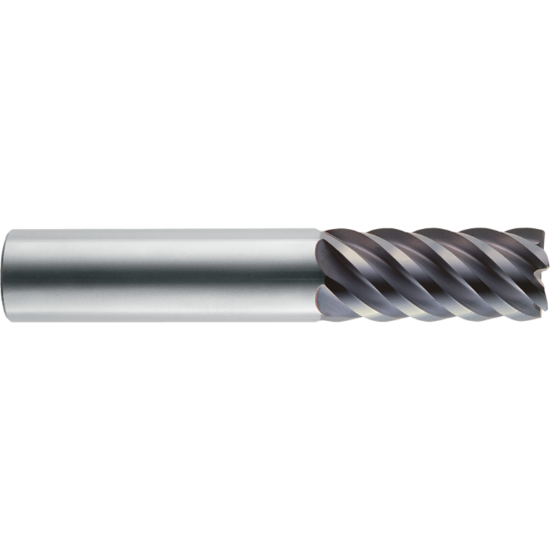

ROBBJACK MXF-802-20-030 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1181 3.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMXF-802-20-030
Delivery date: 3-5 days
$262.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Overall Len 4.0945 104.00MM
Inch/Metric Metric
Single/Double End Single End
Machine Side Connection Size 0.7874 20.00MM
Flutes/Inserts 8
Length Of Cut 1.4961 38.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dimension Description 0.787 x 0.787 x 1.496 x 4.095
Helix Angle 45°
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.7874 20.00MM
Length Type Standard
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.1181 3.00MM
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
