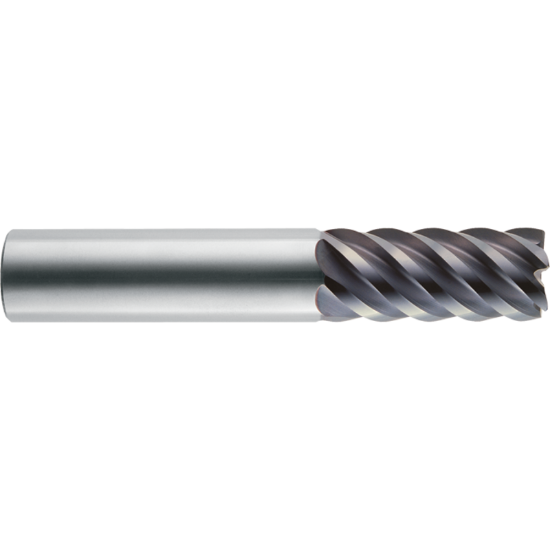

ROBBJACK MXF-602-16-020-FL DIA 16MM SH 0.6299 LOC 1.2598 OAL 3.6220 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMXF-602-16-020-FL
Delivery date: 3-5 days
$226.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State California
Package Size 1
Dimensional Specifications
Corner Radius 0.0787 2.00MM
Helix Angle 45°
Dimension Description 0.630 x 0.630 x 1.260 x 3.622
Cutter Dia 0.6299 16.00MM
Cutter Style Carbide Bull Nose Finisher
Overall Len 3.6220 92.00MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 1.2600 32.00MM
Length Type Standard
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
End Of Tool Shape Corner Radius
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
