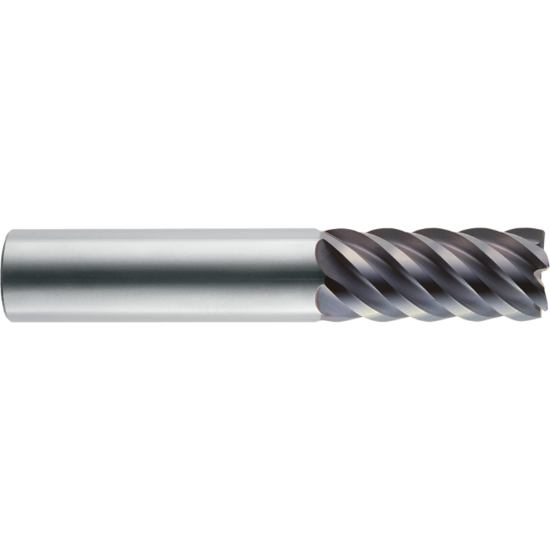

ROBBJACK MXF-602-12-020-FL DIA 12MM SH 0.4724 LOC 0.9843 OAL 3.2677 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMXF-602-12-020-FL
Delivery date: 3-5 days
$132.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Performance Rating High Performance
Application Face Milling, Profile Milling, Copy Milling, Slot Milling, Side Milling
Package Size 1
Made In USA Yes
Dimensional Specifications
Length Type Standard
Cutter Dia 0.4724 12.00MM
Overall Len 3.2677 83.00MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.472 x 0.472 x 0.984 x 3.268
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0787 2.00MM
Tool Material Carbide
Flutes/Inserts 6
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.4724 12.00MM
Inch/Metric Metric
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.4724 12.00MM
Length Of Cut 0.9843 25.00MM
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
