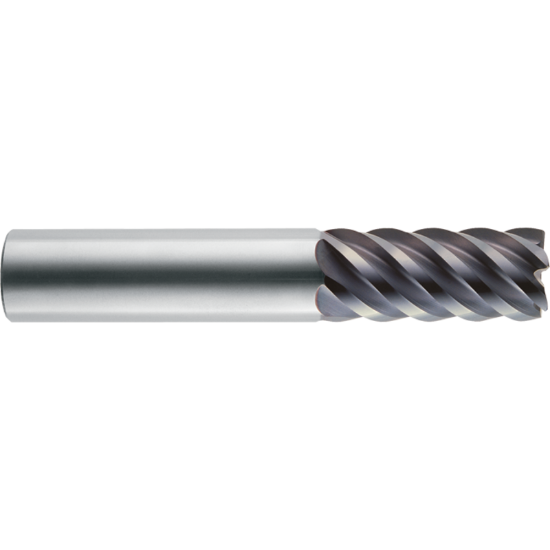

ROBBJACK MXF-602-10-020-FL DIA 10MM SH 0.3937 LOC 0.7874 OAL 2.8346 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMXF-602-10-020-FL
Delivery date: 3-5 days
$94.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Copy Milling, Side Milling, Face Milling
Made In USA Yes
Shipping State California
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Overall Len 2.8346 72.00MM
End Of Tool Shape Corner Radius
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Weldon
Flutes/Inserts 6
Shank/Pilot Dia 0.3937 10.00MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Standard
Corner Radius 0.0787 2.00MM
Length Of Cut 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
Dimension Description 0.394 x 0.394 x 0.787 x 2.835
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
