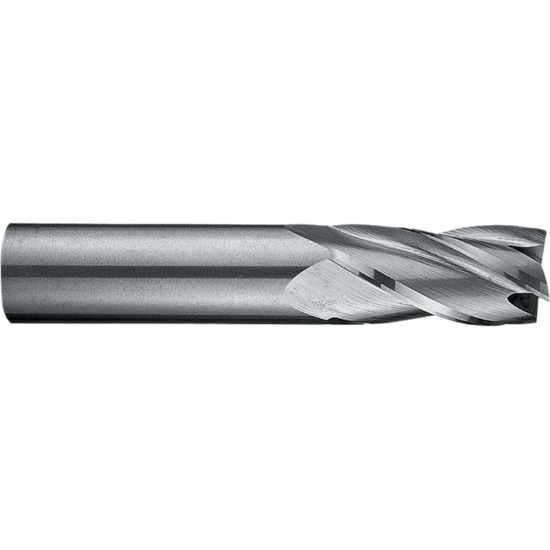

ROBBJACK MTS-401-10 DIA 10MM SH 0.3937 LOC 0.5510 OAL 2.5984 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMTS-401-10
Delivery date: 3-5 days
$50.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Performance Rating High Performance
Shipping State California
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.5510 14.00MM
Length Type Stub
Helix Angle 30°
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.394 x 0.394 x 0.551 x 2.598
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Flutes/Inserts 4
Machine Side Connection Size 0.3937 10.00MM
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.5984 66.00MM
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
