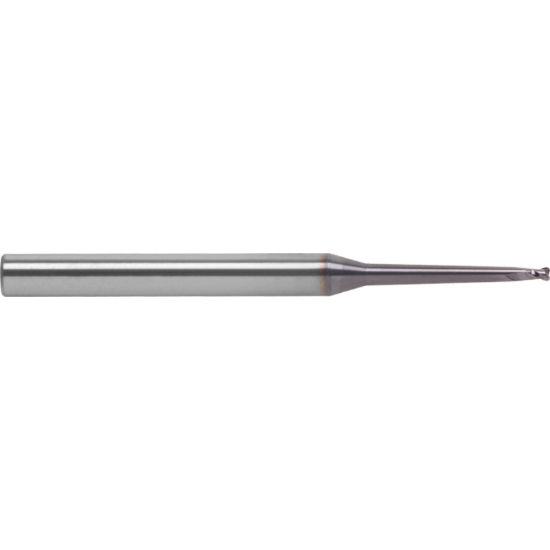

ROBBJACK MTM-204-01.5 DIA 1.50MM SH 0.2362 LOC 0.0591 OAL 2.480 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMTM-204-01.5
Delivery date: 3-5 days
$60.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State California
Dimensional Specifications
Cut Rating <65HRC Steel, Gray Iron, Stainless Steel
Neck Length 0.7874 20.00MM
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4803 63.00MM
Helix Angle 30°
Dimension Description 0.059 x 0.236 x 0.059 x 2.480
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.0590 1.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutter Dia 0.0590 1.50MM
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
