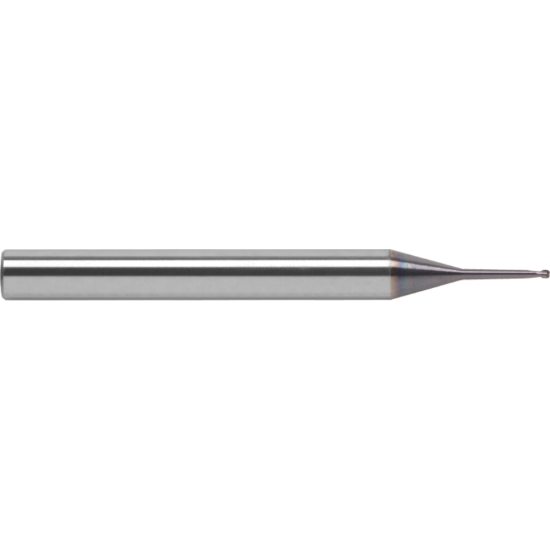

ROBBJACK MTM-203-03 DIA 3MM SH 0.2362 LOC 0.1181 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMTM-203-03
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State California
Application Slot Milling, Copy Milling, Feed Milling, Face Milling, Profile Milling
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.118 x 0.236 x 0.118 x 2.953
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Length Of Cut 0.1181 3.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <65HRC Steel, Gray Iron, Stainless Steel
Helix Angle 30°
Cutter Dia 0.1181 3.00MM
Neck Length 0.5906 15.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.9528 75.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
