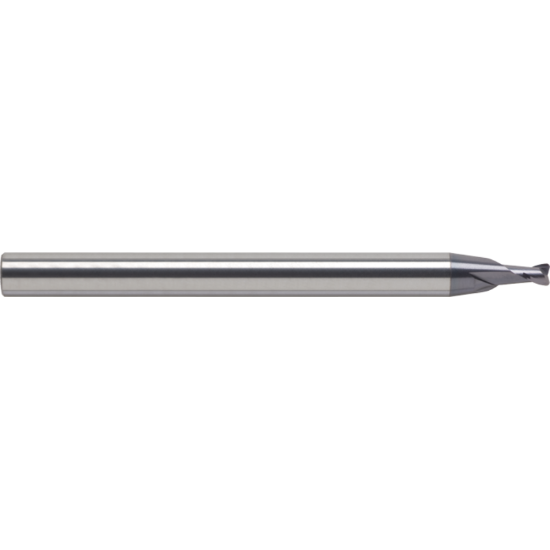

ROBBJACK MTM-201-0.8 DIA 0.80MM SH 0.2362 LOC 0.0315 OAL 2.480 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMTM-201-0.8
Delivery date: 3-5 days
$55.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.0315 0.80MM
Machine Side Connection Size 0.2362 6.00MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Cut Rating <65HRC Steel, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4803 63.00MM
Length Of Cut 0.0315 0.80MM
Helix Angle 30°
Dimension Description 0.032 x 0.236 x 0.032 x 2.480
Flutes/Inserts 2
Length Type Standard
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
