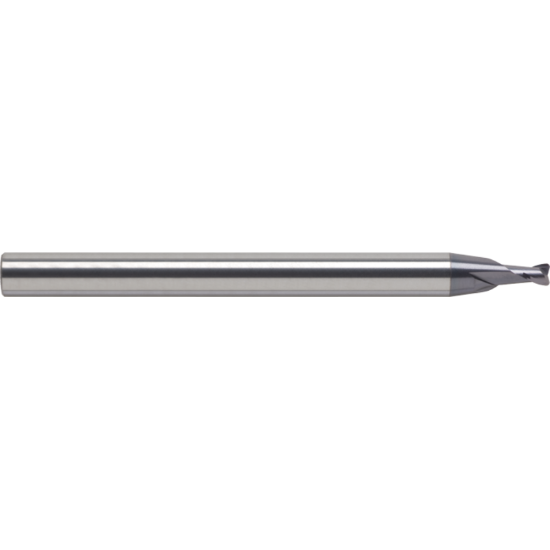

ROBBJACK MTM-201-04 DIA 4MM SH 0.2362 LOC 0.1575 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMTM-201-04
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Feed Milling, Face Milling, Profile Milling
Package Size 1
Shipping State California
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Corner Radius
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.1575 4.00MM
Length Type Standard
Dimension Description 0.157 x 0.236 x 0.158 x 2.953
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Dia 0.1574 4.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <65HRC Steel, Gray Iron, Stainless Steel
Helix Angle 30°
Overall Len 2.9528 75.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
