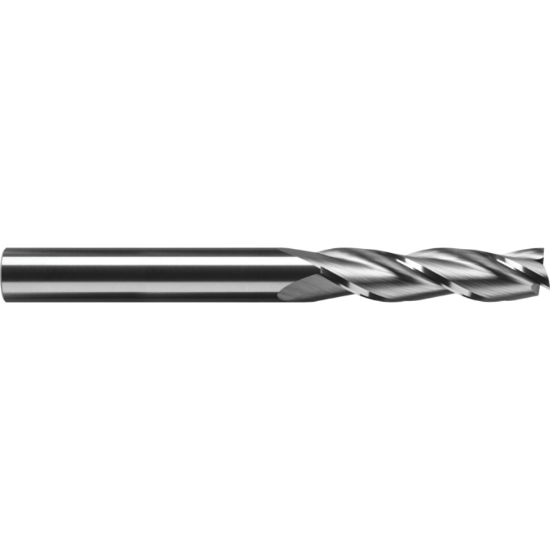

ROBBJACK MTL-303-08 DIA 8MM SH 0.3150 LOC 1.3780 OAL 2.9921 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMTL-303-08
Delivery date: 3-5 days
$89.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Package Size 1
Shipping State California
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cutter Style Carbide Finisher
Flutes/Inserts 3
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
End Of Tool Shape Square
Dimension Description 0.315 x 0.315 x 1.378 x 2.992
Length Of Cut 1.3780 35.00MM
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Overall Len 2.9921 76.00MM
Length Type Extra Long
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
