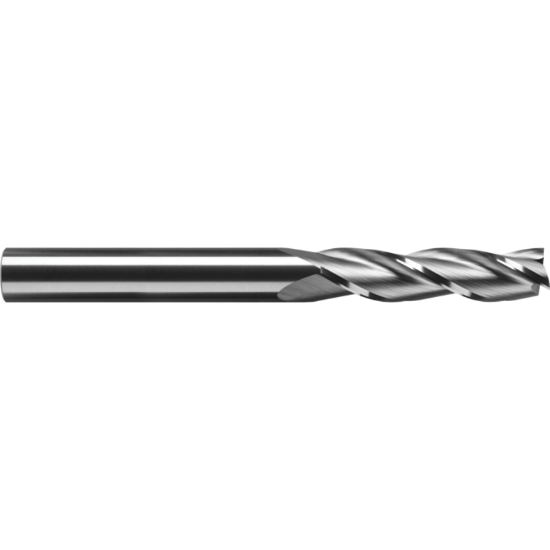

ROBBJACK MTL-303-03 DIA 3MM SH 0.1181 LOC 0.9843 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMTL-303-03
Delivery date: 3-5 days
$77.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating High Performance
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Shipping State California
Dimensional Specifications
Length Of Cut 0.9843 25.00MM
Length Type Extra Long
Helix Angle 30°
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1181 3.00MM
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cutter Style Carbide Finisher
Dimension Description 0.118 x 0.118 x 0.984 x 2.953
Machine Side Connection Size 0.1181 3.00MM
Overall Len 2.9528 75.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
