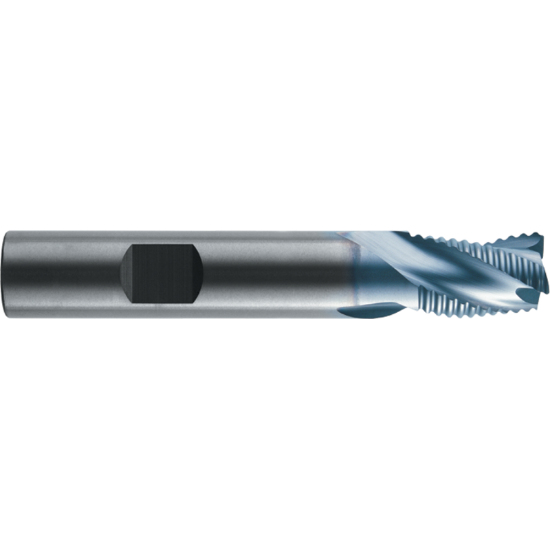

ROBBJACK MSTR-301-08 DIA 8MM SH 0.3150 LOC 0.4724 OAL 2.4803 End Mill Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSTR-301-08
Delivery date: 3-5 days
$72.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA Yes
Shipping State California
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Package Size 1
Dimensional Specifications
Dimension Description 0.315 x 0.315 x 0.472 x 2.480
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.3150 8.00MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Flutes/Inserts 3
Helix Angle 30°
Length Of Cut 0.4724 12.00MM
Length Type Stub
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
