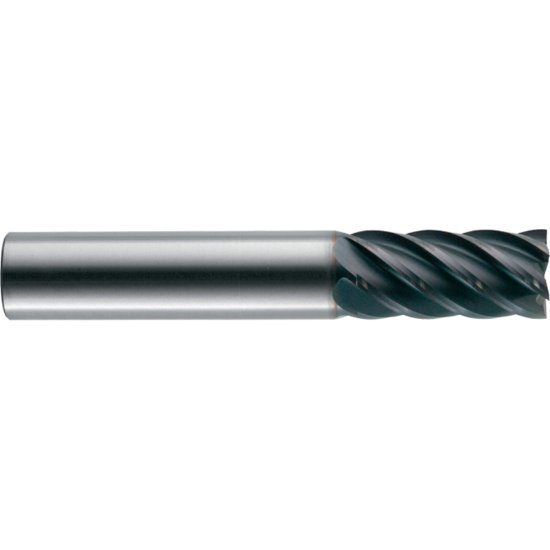

Picture of RobbJack MST-646-12-C Dia 12mm SH 0.4724 LOC 0.9843 OAL3.2677 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0079 0.20mm

RobbJack MST-646-12-C Dia 12mm SH 0.4724 LOC 0.9843 OAL3.2677 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0079 0.20mm

Part Number: ROBMST-646-12-C 0.472 x 0.472 x 0.984 x 3.268
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1266977
Vendor: Sussex Tool and Supply
$113.80

Description

ROBBJACK Standard Helix End Mill Carbide TiCN Corner Radius 0.0079 0.20MM Standard Flute Flutes 6 Single End ROBBJACK Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.2677 83.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 6
Tool Dia 0.4724 12.00MM
Length Of Cut 0.9843 25.00MM
Geometry & Angles
Corner Radius 0.0079 0.20MM
Helix Angle 40
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
