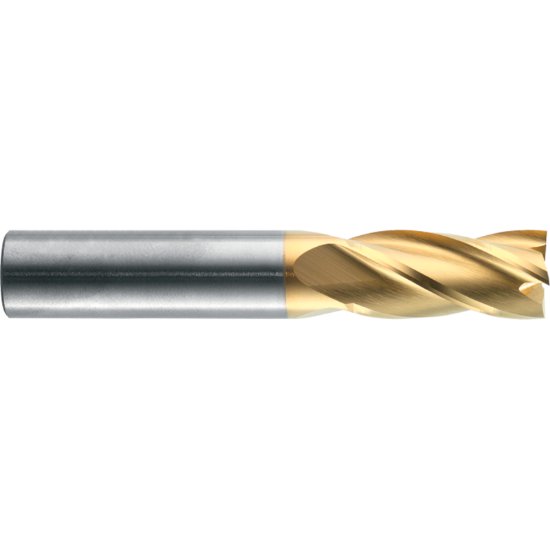

Picture of RobbJack MST-430-16-C Dia 16mm SH 0.6299 LOC 1.2598 OAL3.6220 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp

RobbJack MST-430-16-C Dia 16mm SH 0.6299 LOC 1.2598 OAL3.6220 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp

Part Number: ROBMST-430-16-C 0.630 x 0.630 x 1.260 x 3.622
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1266929
Vendor: Sussex Tool and Supply
$161.43

Description

ROBBJACK Standard Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 4 Single End ROBBJACK Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.6220 92.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Tool Dia 0.6299 16.00MM
Length Of Cut 1.2600 32.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
