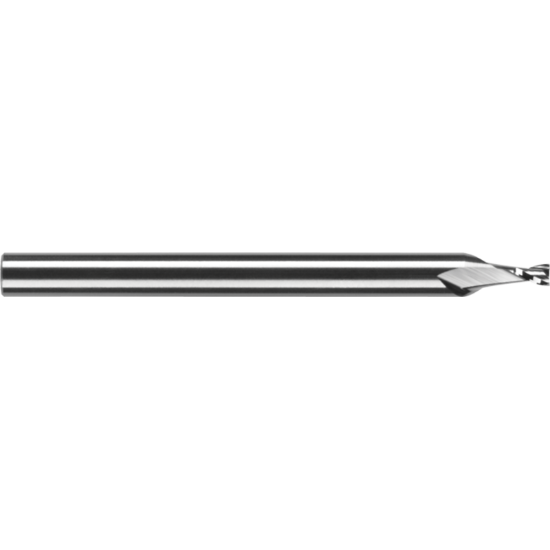

ROBBJACK MSS-2-150 DIA 1.50MM SH 0.1181 LOC 0.0906 OAL 1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSS-2-150
Delivery date: 3-5 days
$18.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating High Performance
Shipping State California
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Dimensional Specifications
Dimension Description 0.059 x 0.118 x 0.091 x 1.496
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Length Of Cut 0.0906 2.30MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Overall Len 1.4961 38.00MM
Length Type Stub
Helix Angle 30°
Cutter Dia 0.0590 1.50MM
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
