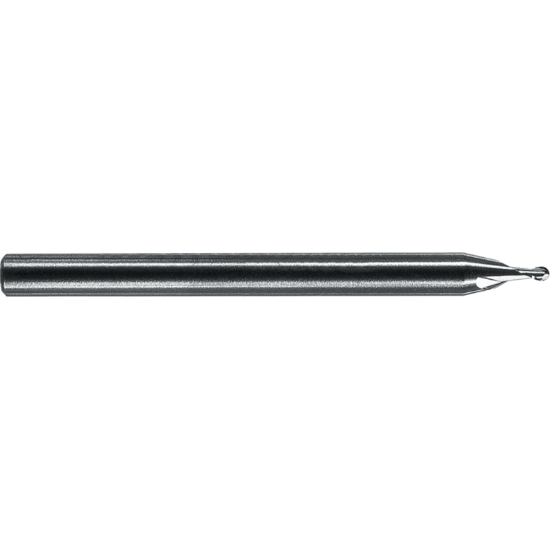

ROBBJACK MSS-2-100-BN DIA 1MM SH 0.1181 LOC 0.0591 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSS-2-100-BN
Delivery date: 3-5 days
$25.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Side Milling, Ball Milling
Made In USA Yes
Package Size 1
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.0393 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Length Of Cut 0.0590 1.50MM
Cutter Style Carbide Ball Finisher
Overall Len 1.4961 38.00MM
Length Type Stub
Helix Angle 30°
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.1181 3.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 2
Dimension Description 0.039 x 0.118 x 0.059 x 1.496
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
