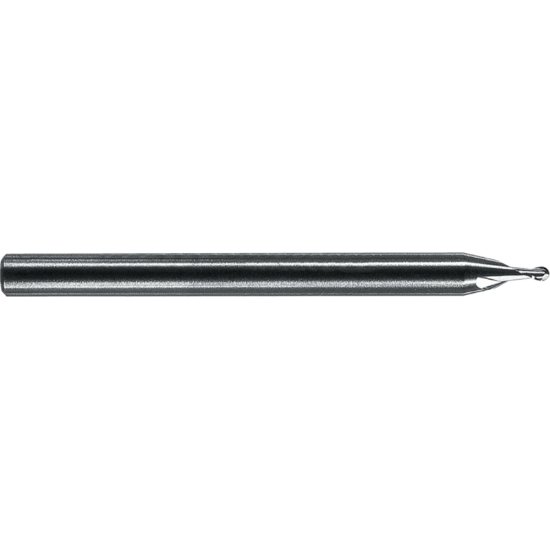

Picture of RobbJack MSS-2-050-BN Dia 0.50mm SH 0.1181 LOC 0.0315 OAL1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

RobbJack MSS-2-050-BN Dia 0.50mm SH 0.1181 LOC 0.0315 OAL1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Part Number: ROBMSS-2-050-BN 0.020 x 0.118 x 0.032 x 1.496
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1266744
Vendor: Sussex Tool and Supply
$30.39

Description

ROBBJACK Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End ROBBJACK Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Length Type Stub
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.4961 38.00MM
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0197 0.50MM
Length Of Cut 0.0315 0.80MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
