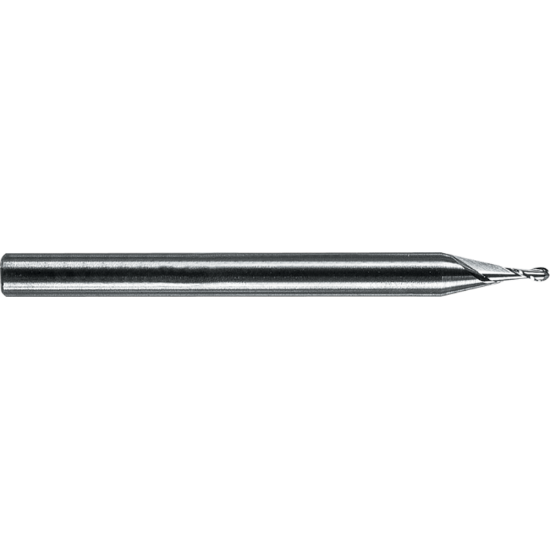

ROBBJACK MSR-2-150-BN DIA 1.50MM SH 0.1181 LOC 0.1770 OAL 1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSR-2-150-BN
Delivery date: 3-5 days
$26.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Package Size 1
Made In USA Yes
Application Ball Slot Milling, Side Milling, Copy Milling, Profile Milling, Ball Milling
Performance Rating High Performance
Dimensional Specifications
Length Type Standard
Dimension Description 0.059 x 0.118 x 0.177 x 1.496
Cutter Dia 0.0590 1.50MM
Flutes/Inserts 2
Inch/Metric Metric
Shank/Pilot Dia 0.1181 3.00MM
Helix Angle 30°
Overall Len 1.4961 38.00MM
Length Of Cut 0.1770 4.50MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1181 3.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
