  • ROBBJACK MSR-2-100-T DIA 1MM SH 0.1181 LOC 0.1181 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide TiN Single End Square Sharp

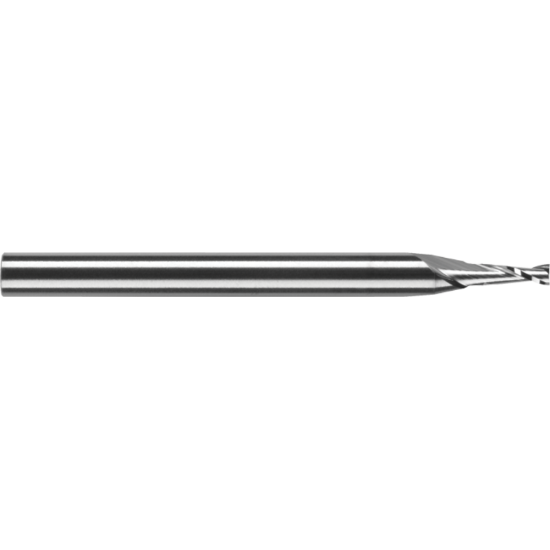

Picture of ROBBJACK MSR-2-100-T DIA 1MM SH 0.1181 LOC 0.1181 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide TiN Single End Square Sharp

ROBBJACK MSR-2-100-T DIA 1MM SH 0.1181 LOC 0.1181 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide TiN Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSR-2-100-T
Delivery date: 3-5 days
$21.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Shoulder Milling, Counterboring, Face Milling, Slot Milling
Package Size 1
Coating TiN
Shipping State California
Made In USA Yes
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.1181 3.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutter Dia 0.0393 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Inch/Metric Metric
Single/Double End Single End
Length Type Standard
Dimension Description 0.039 x 0.118 x 0.118 x 1.496
Overall Len 1.4961 38.00MM
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
