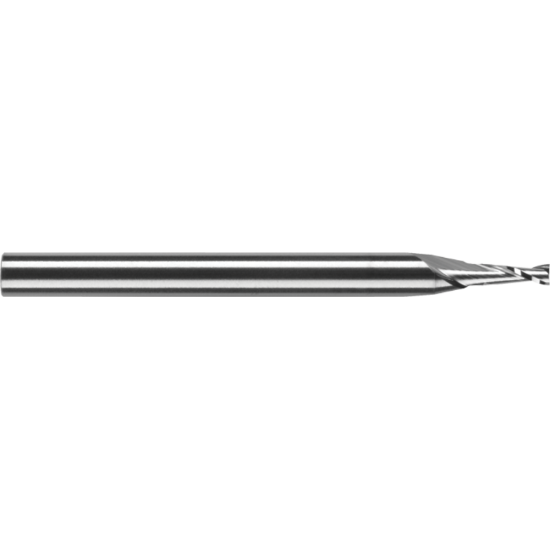

ROBBJACK MSR-2-060 DIA 0.60MM SH 0.1181 LOC 0.0709 OAL 1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSR-2-060
Delivery date: 3-5 days
$22.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Package Size 1
Shipping State California
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cutter Style Carbide Finisher
Overall Len 1.4961 38.00MM
Cutter Dia 0.0236 0.60MM
Machine Side Connection Size 0.1181 3.00MM
Length Of Cut 0.0709 1.80MM
Single/Double End Single End
Length Type Standard
End Of Tool Shape Square
Dimension Description 0.024 x 0.118 x 0.071 x 1.496
Flutes/Inserts 2
Inch/Metric Metric
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
