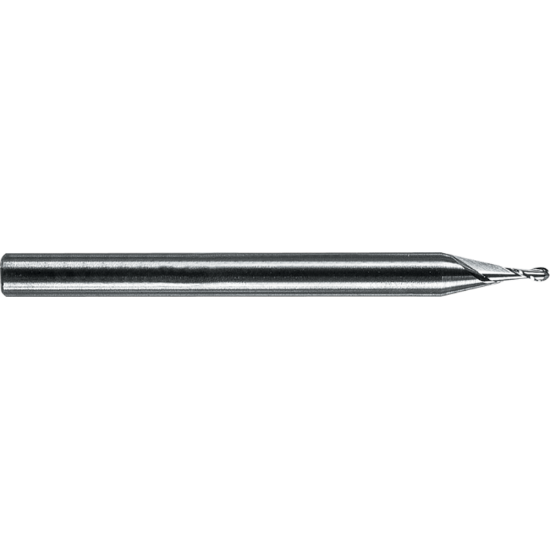

ROBBJACK MSR-2-060-BN DIA 0.60MM SH 0.1181 LOC 0.0709 OAL 1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSR-2-060-BN
Delivery date: 3-5 days
$29.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Shipping State California
Dimensional Specifications
Dimension Description 0.024 x 0.118 x 0.071 x 1.496
Cutter Dia 0.0236 0.60MM
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Length Of Cut 0.0709 1.80MM
Inch/Metric Metric
Overall Len 1.4961 38.00MM
Helix Angle 30°
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
End Of Tool Shape Ball Nose
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
