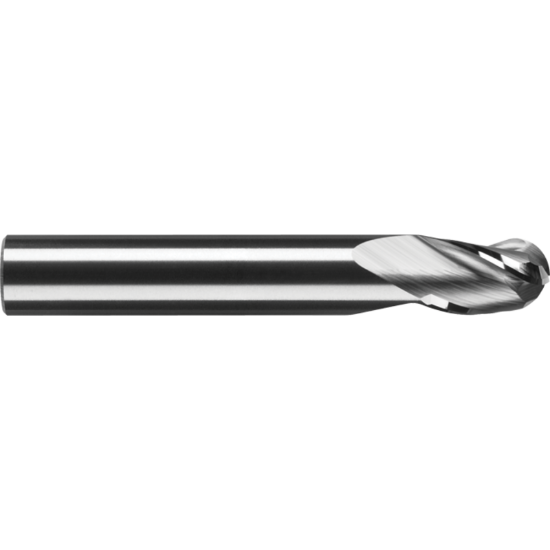

ROBBJACK MSB-301-20 DIA 20MM SH 0.7874 LOC 0.9843 OAL 3.6220 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSB-301-20
Delivery date: 3-5 days
$203.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Profile Milling, Ball Slot Milling, Side Milling, Copy Milling, Ball Milling
Performance Rating High Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Plastic, Wood
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.787 x 0.787 x 0.984 x 3.622
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Length Type Stub
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
End Of Tool Shape Ball Nose
Overall Len 3.6220 92.00MM
Length Of Cut 0.9843 25.00MM
Helix Angle 30°
Cutter Dia 0.7874 20.00MM
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
