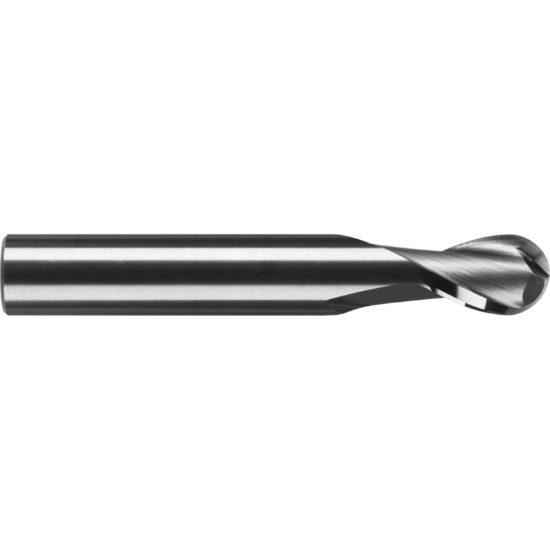

ROBBJACK MSB-201-04 DIA 4MM SH 0.1575 LOC 0.3150 OAL 1.9685 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMSB-201-04
Delivery date: 3-5 days
$31.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating High Performance
Shipping State California
Made In USA Yes
Package Size 1
Dimensional Specifications
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Cutter Dia 0.1574 4.00MM
Cut Rating Aluminum, Plastic, Wood
Flutes/Inserts 2
Length Of Cut 0.3150 8.00MM
Dimension Description 0.157 x 0.157 x 0.315 x 1.969
Length Type Stub
Helix Angle 30°
Inch/Metric Metric
Single/Double End Single End
Shank/Pilot Dia 0.1574 4.00MM
Cutter Style Carbide Ball Finisher
Machine Side Connection Size 0.1575 4.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
