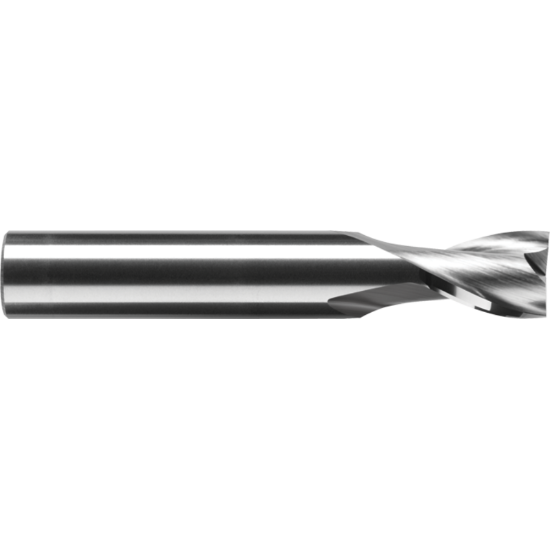

ROBBJACK MS1-201-04 DIA 4MM SH 0.1575 LOC 0.3150 OAL 1.9685 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMS1-201-04
Delivery date: 3-5 days
$21.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Package Size 1
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Machine Side Connection Size 0.1575 4.00MM
Shank/Pilot Dia 0.1574 4.00MM
Single/Double End Single End
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.157 x 0.157 x 0.315 x 1.969
Length Type Stub
Helix Angle 30°
Cut Rating Aluminum, Plastic, Wood
Length Of Cut 0.3150 8.00MM
Cutter Dia 0.1574 4.00MM
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
