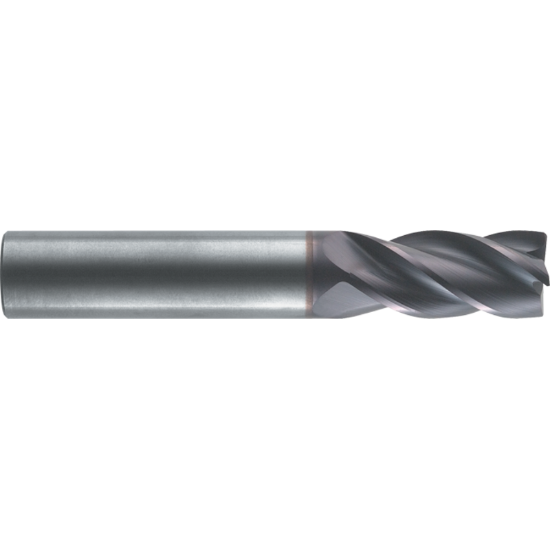

ROBBJACK MNS-402-06-FL DIA 6MM SH 0.2362 LOC 0.5510 OAL 2.2835 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square With Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMNS-402-06-FL
Delivery date: 3-5 days
$58.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating High Performance
Shipping State California
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.2362 6.00MM
Length Of Cut 0.5510 14.00MM
Helix Angle Variable
Tool Material Carbide
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Carbide Finisher
End Of Tool Shape Square
Dimension Description 0.236 x 0.236 x 0.551 x 2.284
Flutes/Inserts 4
Length Type Standard
Inch/Metric Metric
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2835 58.00MM
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
