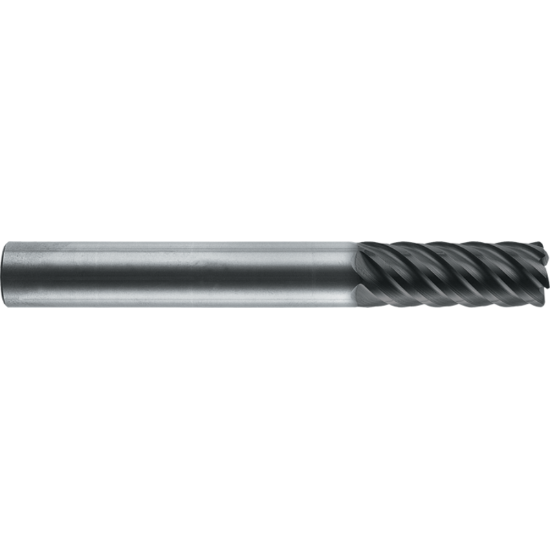

ROBBJACK MHM-802-20 DIA 20MM SH 0.7874 LOC 1.7717 OAL 5.9055 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0591 1.50MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMHM-802-20
Delivery date: 3-5 days
$300.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State California
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Cut Rating <65HRC Steel
Cutter Dia 0.7874 20.00MM
Inch/Metric Metric
Single/Double End Single End
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0591 1.50MM
Length Type Standard
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Helix Angle 45°
Dimension Description 0.787 x 0.787 x 1.772 x 5.906
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Flutes/Inserts 8
Length Of Cut 1.7717 45.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
