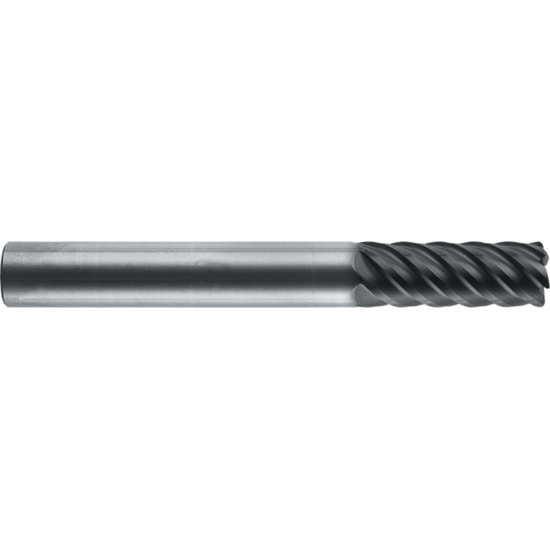

ROBBJACK MHM-602-06 DIA 6MM SH 0.2362 LOC 0.5906 OAL 3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0039 0.10MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMHM-602-06
Delivery date: 3-5 days
$91.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Length Of Cut 0.5906 15.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <65HRC Steel
Overall Len 3.5433 90.00MM
Inch/Metric Metric
Dimension Description 0.236 x 0.236 x 0.591 x 3.543
Tool Material Carbide
Machine Side Connection Type Cylindrical
Corner Radius 0.0039 0.10MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 6
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
