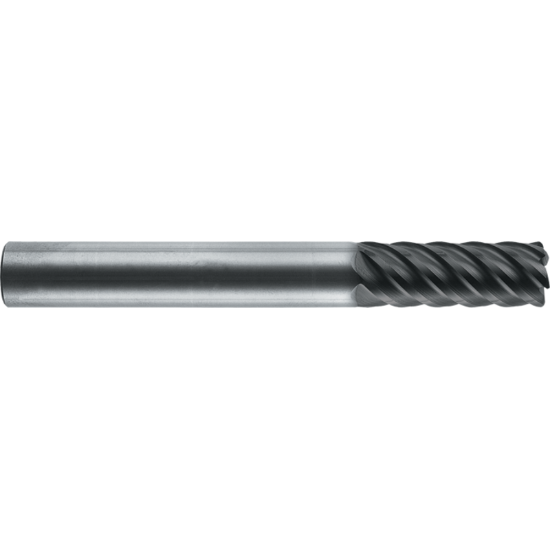

ROBBJACK MHM-402-05 DIA 5MM SH 0.1969 LOC 0.5906 OAL 3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0039 0.10MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMHM-402-05
Delivery date: 3-5 days
$80.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Copy Milling, Slot Milling, Face Milling, Profile Milling
Made In USA Yes
Shipping State California
Package Size 1
Dimensional Specifications
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0039 0.10MM
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Length Type Standard
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dimension Description 0.197 x 0.197 x 0.591 x 3.543
Cut Rating <65HRC Steel
Flutes/Inserts 4
Inch/Metric Metric
Overall Len 3.5433 90.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Length Of Cut 0.5906 15.00MM
Helix Angle 45°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
