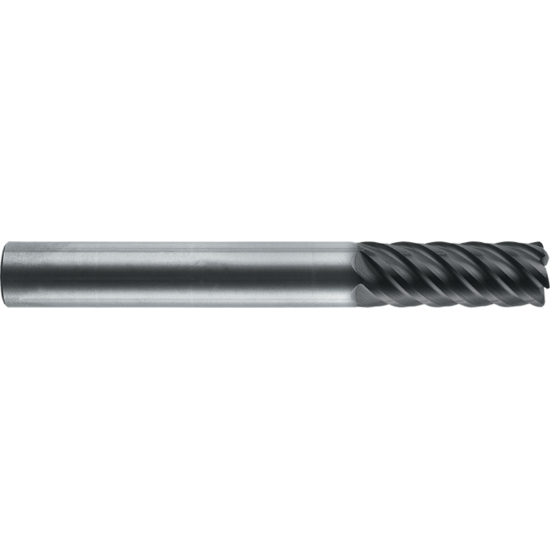

ROBBJACK MHM-402-04 DIA 4MM SH 0.1575 LOC 0.4724 OAL 2.9921 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0039 0.10MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMHM-402-04
Delivery date: 3-5 days
$77.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling, Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State California
Dimensional Specifications
Corner Radius 0.0039 0.10MM
Overall Len 2.9921 76.00MM
Dimension Description 0.157 x 0.157 x 0.472 x 2.992
Cut Rating <65HRC Steel
Single/Double End Single End
Cutter Dia 0.1574 4.00MM
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 4
Length Of Cut 0.4724 12.00MM
Length Type Standard
Inch/Metric Metric
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1575 4.00MM
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
