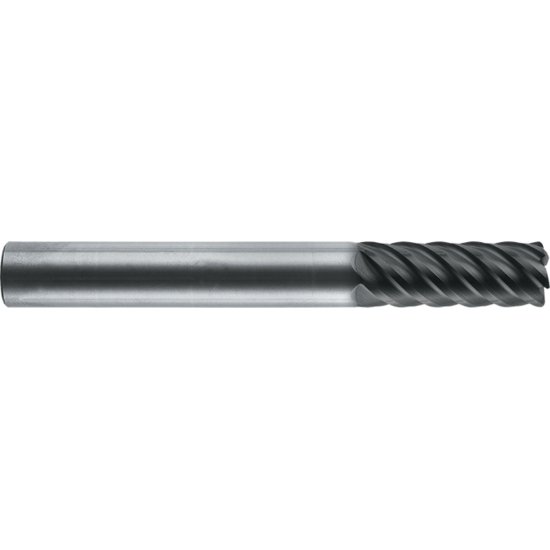

Picture of RobbJack MHM-402-04 Dia 4mm SH 0.1575 LOC 0.4724 OAL2.9921 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0039 0.10mm

RobbJack MHM-402-04 Dia 4mm SH 0.1575 LOC 0.4724 OAL2.9921 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0039 0.10mm

Part Number: ROBMHM-402-04 0.157 x 0.157 x 0.472 x 2.992

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: 1266368
Vendor: Sussex Tool and Supply
$78.13
ROBBJACK High Helix End Mill Carbide Uncoated Corner Radius 0.0039 0.10MM Standard Flute Flutes 4 Single End ROBBJACK Carbide
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <65HRC Steel
Mach Side Connection Size 0.1575 4.00MM
Overall Length 2.9921 76.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 4
Tool Dia 0.1575 4.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0039 0.10MM
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
