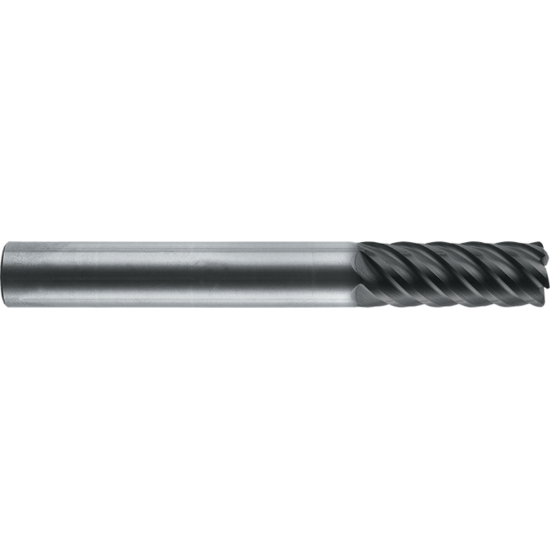

ROBBJACK MHM-102-25 DIA 25MM SH 0.9843 LOC 1.9685 OAL 5.9055 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0591 1.50MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMHM-102-25
Delivery date: 3-5 days
$482.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Shipping State California
Made In USA Yes
Dimensional Specifications
Helix Angle 45°
Dimension Description 0.984 x 0.984 x 1.969 x 5.906
Cut Rating <65HRC Steel
Cutter Dia 0.9844 25.00MM - 63/64
Inch/Metric Metric
Tool Material Carbide
Corner Radius 0.0591 1.50MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Length Type Standard
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Flutes/Inserts 10
Length Of Cut 1.9685 50.00MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
