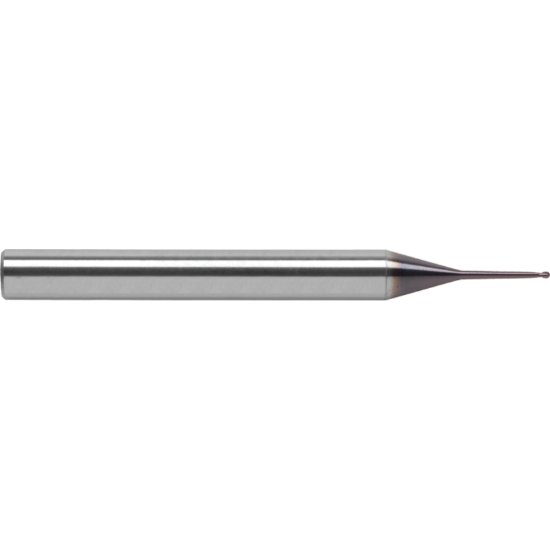

Picture of RobbJack MDM-204-04 Dia 4mm SH 0.2362 LOC 0.1575 OAL2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

RobbJack MDM-204-04 Dia 4mm SH 0.2362 LOC 0.1575 OAL2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Part Number: ROBMDM-204-04 0.157 x 0.236 x 0.158 x 2.953
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1265823
Vendor: Sussex Tool and Supply
$75.80

Description

ROBBJACK Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End ROBBJACK Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.9528 75.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1575 4.00MM
Length Of Cut 0.1575 4.00MM
Neck Length 0.5906 15.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <65HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
