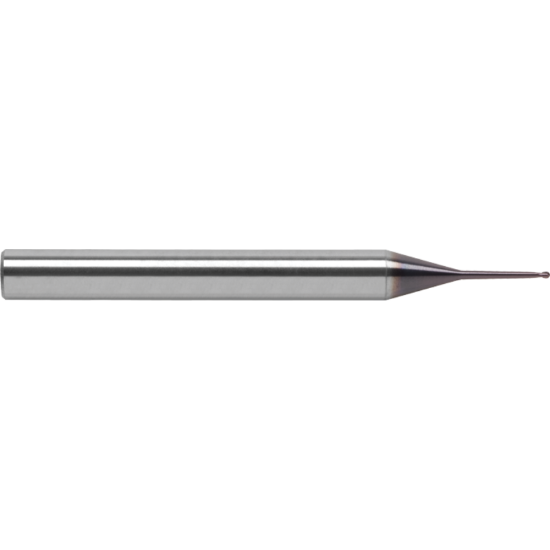

ROBBJACK MDM-203-03 DIA 3MM SH 0.2362 LOC 0.1181 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMDM-203-03
Delivery date: 3-5 days
$67.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State California
Dimensional Specifications
Cutter Dia 0.1181 3.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cut Rating <65HRC Steel
Flutes/Inserts 2
Inch/Metric Metric
Helix Angle 30°
Length Of Cut 0.1181 3.00MM
End Of Tool Shape Ball Nose
Length Type Long / With Neck
Dimension Description 0.118 x 0.236 x 0.118 x 2.953
Neck Length 0.1969 5.00MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.9528 75.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
