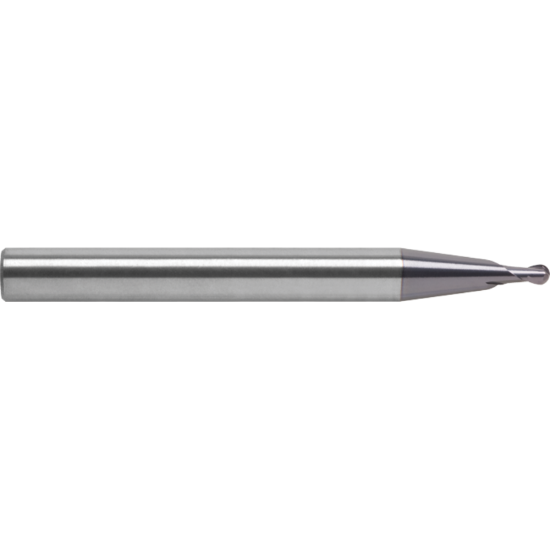

ROBBJACK MDM-201-12 DIA 12MM SH 0.4724 LOC 0.4724 OAL 3.9370 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMDM-201-12
Delivery date: 3-5 days
$103.85

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Made In USA Yes
Shipping State California
Package Size 1
Dimensional Specifications
Cutter Dia 0.4724 12.00MM
Shank/Pilot Dia 0.4724 12.00MM
Helix Angle 30°
Dimension Description 0.472 x 0.472 x 0.472 x 3.937
Overall Len 3.9370 100.00MM
Cutter Style Carbide Ball Finisher
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Length Of Cut 0.4724 12.00MM
Length Type Long
Inch/Metric Metric
End Of Tool Shape Ball Nose
Cut Rating <65HRC Steel
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
