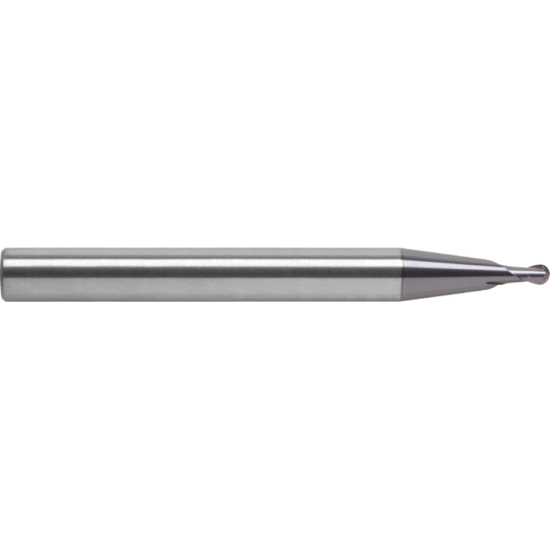

ROBBJACK MDM-201-0.5 DIA 0.50MM SH 0.2362 LOC 0.0197 OAL 2.480 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMDM-201-0.5
Delivery date: 3-5 days
$55.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Side Milling, Ball Milling, Profile Milling
Performance Rating High Performance
Made In USA Yes
Shipping State California
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Dimension Description 0.020 x 0.236 x 0.020 x 2.480
End Of Tool Shape Ball Nose
Overall Len 2.4803 63.00MM
Helix Angle 30°
Cutter Dia 0.0197 0.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.0197 0.50MM
Cut Rating <65HRC Steel
Flutes/Inserts 2
Length Type Long
Inch/Metric Metric
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
