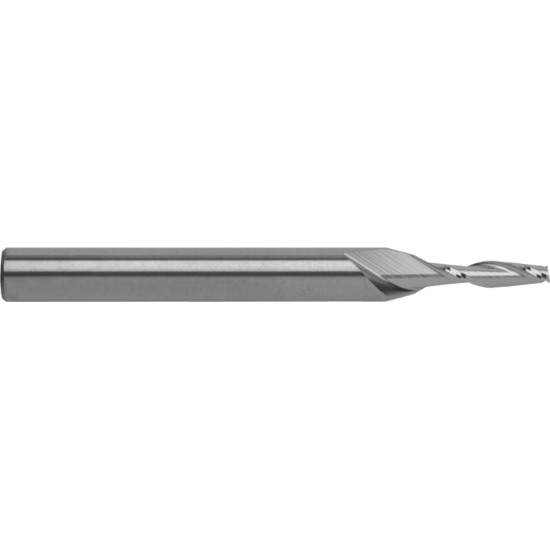

ROBBJACK MC8-203-06 DIA 6MM SH 0.2362 LOC 0.7874 OAL 2.4803 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMC8-203-06
Delivery date: 3-5 days
$36.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Performance Rating High Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Plastic, Wood
Length Type Standard
Helix Angle
Dimension Description 0.236 x 0.236 x 0.787 x 2.480
Cutter Dia 0.2362 6.00MM
Single/Double End Single End
Machine Side Connection Size 0.2362 6.00MM
Tool Material Carbide
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4803 63.00MM
Flutes/Inserts 2
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
