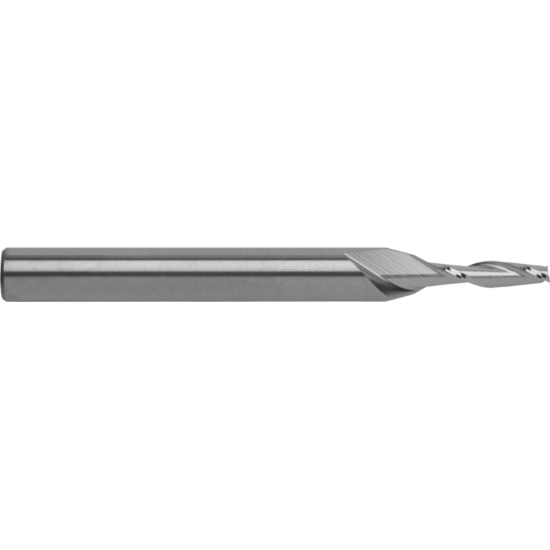

ROBBJACK MC8-203-04 DIA 4MM SH 0.2362 LOC 0.6299 OAL 2.4803 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMC8-203-04
Delivery date: 3-5 days
$36.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Made In USA Yes
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State California
Dimensional Specifications
Machine Side Connection Size 0.2362 6.00MM
Cutter Dia 0.1574 4.00MM
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Flutes/Inserts 2
Inch/Metric Metric
Helix Angle
Dimension Description 0.157 x 0.236 x 0.630 x 2.480
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4803 63.00MM
Length Of Cut 0.6300 16.00MM
Single/Double End Single End
Cut Rating Aluminum, Plastic, Wood
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
