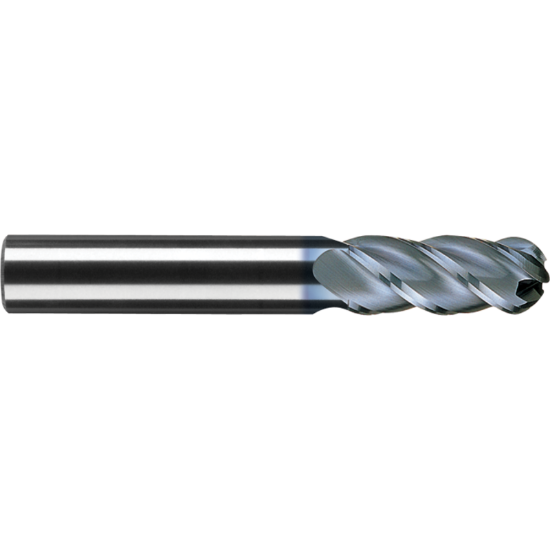

ROBBJACK MB-440-20 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMB-440-20
Delivery date: 3-5 days
$247.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.0945 104.00MM
Cutter Style Carbide Ball Finisher
Dimension Description 0.787 x 0.787 x 1.496 x 4.095
Helix Angle 40°
Inch/Metric Metric
Single/Double End Single End
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 4
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
