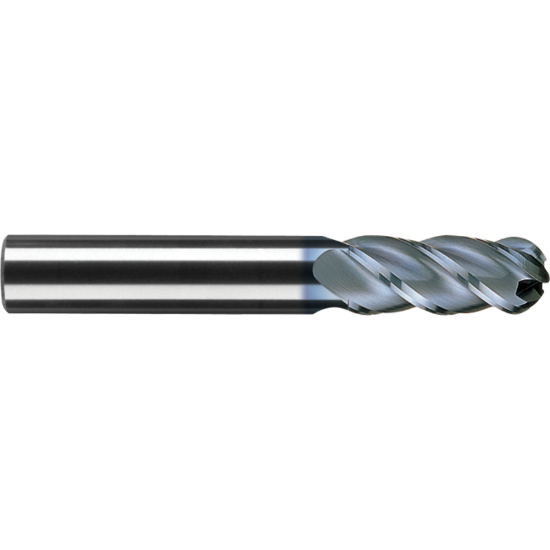

ROBBJACK MB-440-10 DIA 10MM SH 0.3937 LOC 0.7874 OAL 2.8346 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBMB-440-10
Delivery date: 3-5 days
$65.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Helix Angle 40°
Inch/Metric Metric
Single/Double End Single End
Shank/Pilot Dia 0.3937 10.00MM
Machine Side Connection Size 0.3937 10.00MM
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dimension Description 0.394 x 0.394 x 0.787 x 2.835
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.7874 20.00MM
Overall Len 2.8346 72.00MM
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
