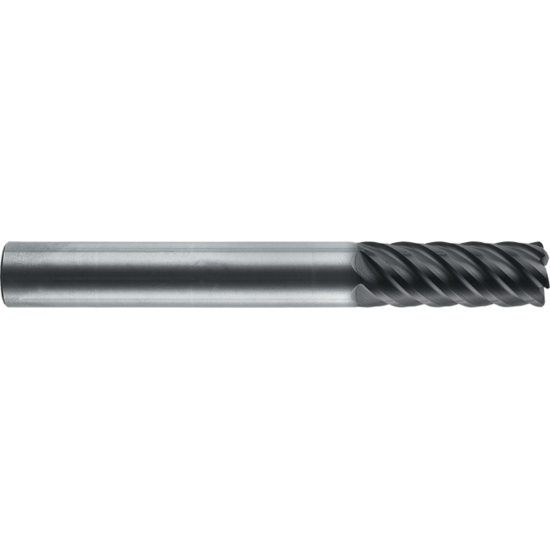

ROBBJACK HM-602-16 DIA 1/2 SH 0.50 LOC 1.2500 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0400 1.02MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBHM-602-16
Delivery date: 3-5 days
$150.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Shipping State California
Performance Rating High Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0400 1.02MM
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
Inch/Metric Inch
Dimension Description 0.500 x 0.500 x 1.250 x 4.000
Cutter Dia 0.5000 12.70MM - 1/2
Helix Angle 45°
Cut Rating <65HRC Steel
Cutter Style Carbide Bull Nose Finisher
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
