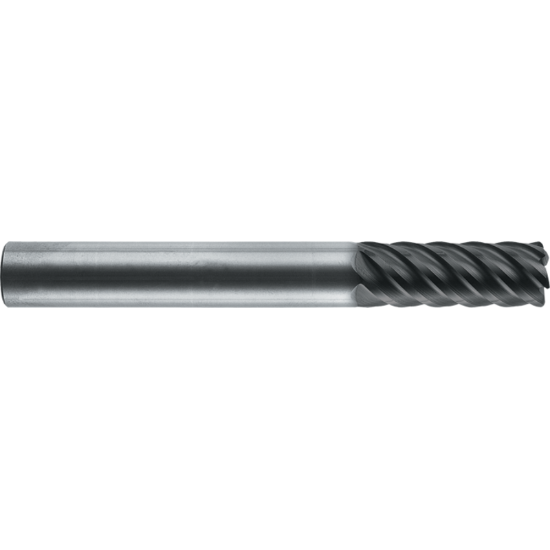

ROBBJACK HM-602-14 DIA 7/16 SH 0.4375 LOC 1.1250 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0400 1.02MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBHM-602-14
Delivery date: 3-5 days
$127.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Face Milling, Profile Milling, Side Milling, Slot Milling, Copy Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Length Of Cut 1.1250 28.58MM
Length Type Standard
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0400 1.02MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.438 x 0.438 x 1.125 x 4.000
Cut Rating <65HRC Steel
Cutter Dia 0.4375 11.11MM - 7/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Inch/Metric Inch
Overall Len 4.0000 101.60MM
Flutes/Inserts 6
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
