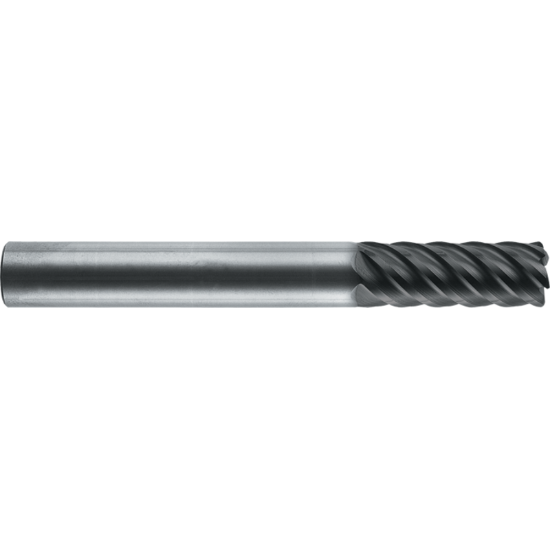

ROBBJACK HM-602-12 DIA 3/8 SH 0.3750 LOC 1.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBHM-602-12
Delivery date: 3-5 days
$104.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State California
Application Side Milling, Copy Milling, Slot Milling, Face Milling, Profile Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Description 0.375 x 0.375 x 1.000 x 4.000
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Overall Len 4.0000 101.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
End Of Tool Shape Corner Radius
Cut Rating <65HRC Steel
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
