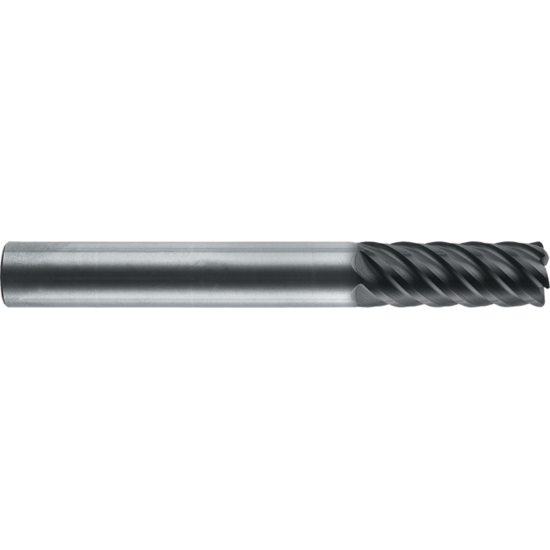

ROBBJACK HM-602-10 DIA 5/16 SH 0.3125 LOC 0.7500 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBHM-602-10
Delivery date: 3-5 days
$86.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Copy Milling, Profile Milling, Slot Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State California
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 4.0000 101.60MM
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0300 0.76MM
Cut Rating <65HRC Steel
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
Dimension Description 0.313 x 0.313 x 0.750 x 4.000
Length Type Standard
Cutter Dia 0.3125 7.94MM - 5/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
Inch/Metric Inch
Machine Side Connection Size 0.3125 7.94MM
Helix Angle 45°
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
