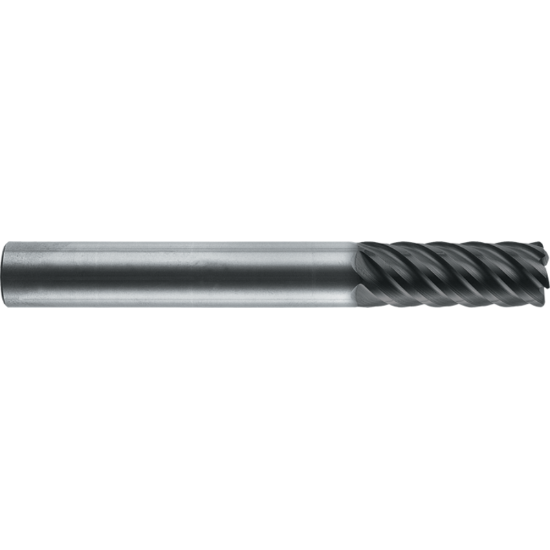

ROBBJACK HM-602-08 DIA 1/4 SH 0.2500 LOC 0.6250 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBHM-602-08
Delivery date: 3-5 days
$80.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.250 x 0.250 x 0.625 x 3.500
Cut Rating <65HRC Steel
Length Of Cut 0.6250 15.88MM
Single/Double End Single End
Helix Angle 45°
Corner Radius 0.0200 0.51MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Machine Side Connection Size 0.2500 6.35MM
Overall Len 3.5000 88.90MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
