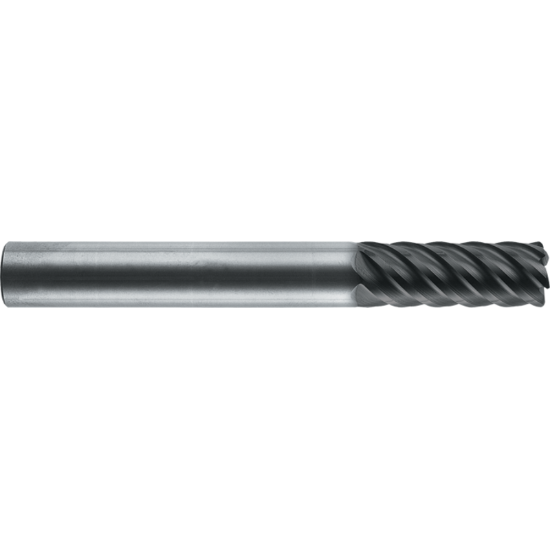

ROBBJACK HM-402-04 DIA 1/8 SH 0.2500 LOC 0.3750 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBHM-402-04
Delivery date: 3-5 days
$74.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Slot Milling, Side Milling, Face Milling, Profile Milling
Made In USA Yes
Shipping State California
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0150 0.38MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Helix Angle 45°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Length Of Cut 0.3750 9.53MM
Single/Double End Single End
Length Type Standard
Cut Rating <65HRC Steel
Flutes/Inserts 4
Dimension Description 0.125 x 0.250 x 0.375 x 3.000
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
