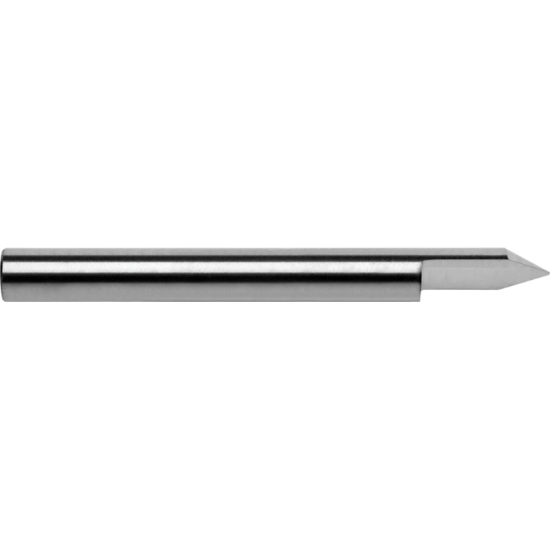

ROBBJACK ET4-01090 Standard Engraving Tool 0.01-in Tip, 0.25-in OD, 90° Incl. Angle, 2-in OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBET4-01090
Delivery date: 3-5 days
$21.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Engraving
Package Size 1
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cut Dia Min 0.0100 0.25MM - #87
Cutter Style Engraving
Flutes/Inserts 1
Single/Double End Single End
Overall Len 2.0000 50.80MM
End Of Tool Shape Engraver
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.2500 6.35MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
